Frequently Asked Questions

What Exactly Does the Software Do?

The software will design a wall mounted sundial.  It is designed to work only in the northern hempshere between the latitudes of 15 & 70 degrees and for any wall with a bearing of between 110 and 250 degrees, in other words it will design a declining wall mounted sundial on a wall that is up to 70 degrees away from due south.  These limitations are a combination of me being lazy and not sorting out the maths for the southern hemisphere and being pragmatic about where a sundial works best.  The software is very easy to use.

What is the history?

This software was originally written in 2001 and has had a few updates since then.   It was written to design a sundial for the wall of my own house but by the time it was finished I had long since moved.  The first version that was stable enough to go on sale was in June 2001.

Please note that this is very much a hobby and has little commercial value.  The quantities sold are quite low, as you can imagine very few people have the patience and ability to do this, so welcome to a small club.  The software though is quite stable and has quite a long history of use with an average of 15 copies sold per year so now about 150 copies sold in total.

What Support do I get.

I realise that for some people this is quite a challenge, often both with using the computer and with the task of designing the sundial and so I am quite happy to answer the odd question.  I usually then update this page to make things easier for others to understand, so please take time to read the information on this page before you contact me.  Also please remember to give as much information as possible as otherwise I will not be able to help.

How Accurate is it?

It is not possible to design a more accurate dial.  If you measure your wall bearing to within a half degree and you know your latitude and longitude, then all corrections are taken into account and the results are amazingly accurate.

Downloading the sofware.

You can download the software here sundial.exe.  The software has limited functionality until you pay for and dowload the key-file.  Please check first it runs on your machine before you pay.  The software is compiled only for Microsoft Windows, there are no Linux or Mac versions.

Downloading the Key File.

The full features of this software are disabled until you put a key-file in the same directory as the program.  This is to allow you to download & check the software runs on your machine before you pay any money.  The key-file is a simple .txt file starting with the letter K and if you open it you will see see words "Keyfile for sundial program".  It is the filename that is important so please do not change it.  The directory should look something like this with both the .exe and key file together in the same directory. You also see here see a loacaldata.txt file which is created after you have run the software for the first time and stores your last settings to save you time re-entering them.

To download it and the sofware, press the RIGHT button on your mouse then Save Target as... and follow the instructions.  I suggest you should create a directory specifically for the code and key.  Please try to not get confused about this and if you are struggling please get someone to help you.  If the software does not see the key-file it will warn you and tell where the key needs to be placed:

Latitude & Longitude

The software comes with a latitude & longitude look-up table of a large number of cities in Europe & America.   If the position of your sundial is more than 30 miles from these locations, for best results you need to enter your exact latitude & longitude.  You only need to enter the latitude and longitude to within 0.1 degree which should be easy to obtain from a local map.

Number Format

When you enter the all the inputs like latitude & longitude of your location, you need to enter the number using local number notation of your computer.  For example 50.1 is correct for the UK and 50,1 is correct in most of Europe.  It displays the numbers in this format.

Please note, when you look up your latitude and longitude, you may find the value written as degrees and minutes, where the second number is the minutes and is beween 0 and 59.  The software used decimal so to convert take the minute number and divide it by 60 to get the part of the number that is after the decimal point, so for example 30 minutes => 30/60 => 0.5

Time Zone

The program will generate your dial to your chosen time-zone, specified as UTC.  For further information I found this web page helpful. or the .pdf map here.

Wall Bearing

The Wall Bearing is the True direction that the wall faces and it is essential that this is measured accurately.  To measure this start by finding the Magnetic Bearing using a good quality-walking compass like this one from Silva.  Just to remind you, True North points to the rotational axis of the earth, whereas Magnetic North points to a magnetic pole caused by the rotating earths molten iron core. The Magnetic north moves about a little, every few thousand years it even flips, it is not in the same place as True North, but it is convenient and can be found by using a small magnetic strip of steel floating inside a plastic case, i.e a compass.

Hold either the back edge (if it is flat) or the front of your compass against the wall and rotate the dial until it aligns with the needle to get the Magnetic Bearing.  You then subtract or add the magnetic declination, usually just a few degrees to get the True Bearing, which the program needs.  The declination can be obtained from a local map, a local library or this WIKI page.  For UK sites with a westerly declination of a few degrees this number is subtracted.

For those that need a reminder of school math, the bearing is a number between 0 and 360 that goes clockwise; 0 degrees is north, 90 degrees is east, 180 degrees points towards due-south and 270 degrees points west.  The bearing you end up with will need to be between 110 to 250 degrees.

I cannot stress how important it it to get the bearing accurately.  GPS navigation computers will NOT work as they are not accurate enough.  When you use a compass you need to make sure to remove all steel objects like watches and nails that will cause an offset.  Also, for those that live in an area of high declination like north America, you should go to your local library as there may be large local variation which will only be known locally, remember the bearing of the wall needs to be within a half degree.  If you are finding this difficult then do not panic.  I suggest you make several prototypes each with one degree steps and see which one works best.  It is obviously more work, but you are unlikely to be more than a couple of degrees out and this may just be the easiest solution.

The accuracy with which you need to measure the wall, also depends on how far it points away from due-south.  The south facing dials can get away with 1 or even 2 degrees accuracy, but if the wall is 60 degrees away from south then the wall bearing is very important.  You can see this by how closely some of the hour lines are and if you want to include these hours lines, you need to measure the wall with quite some accuracy.  This is a large part of the art of sundial making.

Why have you forgotten us in the southern hemisphere?

Simply the demand from the southern hemisphere is very low and it is also not easy for me to test if it works and it would be irresponsible to sell something that is untested.  My offer, if you have an email address from a country in the southern hemisphere, then contact me and I will give you the keyfile for free on the condition that you share with me your results.

If I am correct, to design your dial for the southern hemisphere you need to enter your latitude as if it were a postive number and then add 180 degrees to your wall bearing, so 10 becomes 190.   I think it is this simple!!

Building the dial

The easiest way to build and test your dial is to run the program and print PDF.  This makes a PDF file and plots only the hour angles and gnome angle but no hours are written as this is intended as a design aid rather than to be used directly. If you want these then please open the program to at the largest screen size possible,  press the PRINT SCREEN button on your keyboard, open a graphics package and paste the image.  You can now crop and manipulate this image ensuring that you keep the same aspect ratio.

I used the print screen method on these two examples where I printed the results on an A4 sheet, fixed them to hardboard and built the gnome using thick copper wire.  The sundials are accurate to 5 minutes which is not bad for just a few minutes work and a great school science project.

When you build your dial, may I suggest you have a light background onto which the shadow falls.  Common sense really, but it is a bit annoying not to be able to read your sundial after all your effort.

To help with printing, there is a PDF print facility

What if the wall is not vertical?

This is advanced stuff, but it perfectly possible to get an accurate dial working on a non-vertical wall.  You could even make this a feature.  The first thing is to measure the slope of the wall in the north-south direction.  Once you have this, say the wall slopes backwards by 5 degrees, then add this figure to your latitude, and the sundial will work just fine.

The Equation-of-Time.

You've built your dial and you have noticed an error.  Two things will cause this, either your construction is faulty (which I am sure is very unlikely) or the earth is broken....  I refer to Equation of Time.

The sundial measures the position of the sun relative to the surface of the earth.  This position obviously changes throughout the day as the sun travels overhead, but surprisingly also varies throughout the year.  There are two reasons for this; the first is the Earth moves round the Sun in a slightly elliptical orbit, the second is the Earth is tilted by about 23, resulting in the height of the Sun changing between summer and winter.  Both of these influence how the sundial is read and the error equation is calculated and drawn by the program.  It is called the Equation of Time.  for more information have a look here.

When the Equation of Time is positive, this shows that the "sun time" is ahead of "earth time" and this time needs to be subtracted from the time that the sundial shows.

Make a window sundial.

The software is ideal for creating a sundial for a window. For details on how to do this then the British Society of Master Glass Painters (yes there is such an organisation) have created two very nice documents part I and part II . A Google search on "window sundial" will also reveal quite a lot.

Will you design the dial for me

No, but there are many designers out there who would be happy to help.

Problems running the software.

I have found that a small number of users have problems running the software because of an old version of  vbrun300.dll.  If you are having problems, look in your directory C:\Windows\System and check your vbrun300.dll file is 12th may 1993 or later.  If it is you are ok.

My Limit of Liability.

Please note that using this software has a limit of liability equal to the price you paid and with a time limit within a year of purchase.

Useful Links.



Sundials you have made

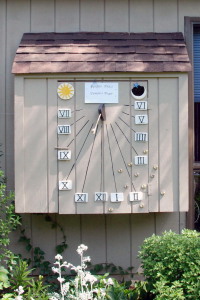

If you have gone to all the effort of building a beautiful sundial then please take a picture of it and I will display it here.  I would love to see them and I am sure you will agree that wall mounted sundials are a wonderful acknowledgement to our natural world.

Remember, with this software you can make as many sundials as you like, but you must not distribute to anybody else.

What are you waiting for.

Enjoy

Chris
